DESCRIPTION

Basic Info.

Model NO.	CLW79901
Type	Rear Loader
Certification	ISO9000, CCC, TS16949
Volume	＞15000L
Emission Standard	Euro 2/3/4/5/6
Transmission Type	Manual
Payload	20T
Fuel	Diesel
Drive Wheel	6×4
Brand	Dongfeng
Models	Large
Usage	Arm Type
Condition	New
Container Volume	18-20cbm
Steel Grade	Q345b or High Tensile Steel 610 and 700
Transport Package	Waxed Before on Board
Specification	CCC and ISO9001
Trademark	CLW
Origin	Suizhou, Hubei
HS Code	8701909000
Production Capacity	1500unit/Month

Product Description

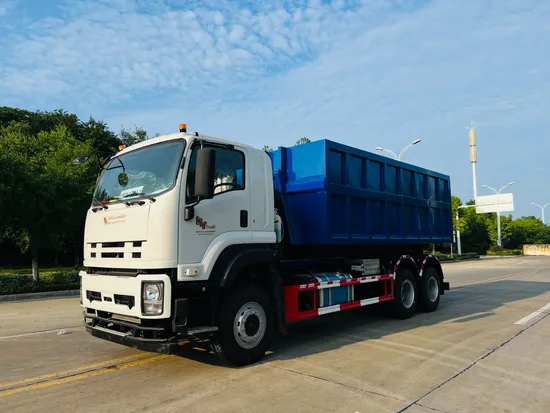

Exported Japan ISUZ-U 6x4 22cbm 22000Liters Hook Lift Garbage Dump Transfer Truck

I. Details of Exported Japan ISUZ-U 6x4 22cbm 22000Liters Hook Lift Garbage Dump Transfer Truck
(1) Functions:

Hook lift garbage truck ( also called roll-off garbage truck ,hool loader container truck ,roll on off truck ,hook lifter truck hook-lift garbage truck,carriage removable/dismountable truck,garbage collection truck,etc) is designed to colledct and transport municipal solid waste ,widely used in residence commnuity ,hospital ,municipal environmental section ,garbage transportation station. Loading capaciry ranges from 1 tons ,2tons ,3 tons, 5tons ,8 tons ,14tons ,18tons ,20tons ,30tons .The operation system could be manual or electrical control.

(1) More than 12 years professional manufacturer experience.(2) CCC ISO9001 agreement (3) Be designed according to your requirements (4) Small order can be accepted (5) We accept 100% inspection, welcome to our factory at any time (6) 12 month quality guarantee term

We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, I-SUZU, JMC, JAC with 3m3 to 20m3 garbage compactor trucks.

II. Details of Exported Japan ISUZ-U 6x4 22cbm 22000Liters Hook Lift Garbage Dump Transfer Truck

SPECIFICATION SHEET
Chassis parameters
Chassis model	QL5330GX		Chassis brand	ISUZ
Overall dimensions	9500*2500*3500mm		Wheel base	4605+1300mm
Front/rear wheel track	1960/1860mm		Front/rear suspension	1450/1250mm
Approach/departure angle	24/12°		Maximum speed	90km/h
Cab	Configuration		isuz VC46 single air suspension cab, with air conditioner, allowable 3 passengers, with ABS, with air suspension seat
	Color		white,other color is optional
Engine	Model		ISUZ 6UZ1-TCG40 or ISUZ 6UZ1-TCG51
	Emission		Euro 4 or Euro5
	Type		6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine
	Rated power		350hp
	Displacement		9839ml
	Max.torque		1422N·m
Tire	Size		11.00R20 Tire, With one spare tyre
	Number		10+1 nos
Front axle loading	7tons
Rear axle loading	in total 18tons
Rated voltage	24V,DC
Transmissions	FAST, 9 gears frowards and 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
LIFTING SYSTEM
Dumper	All-metal,size L*W*H (5.7m*2.2m*1.9m), about 22 cubic meters
Sidewalls	Sheet carbon steel (thickness: 5 mm)
Bottom	Sheet carbon steel (thickness: 6 mm)
Discharge time	40S-50S
Discharge system	lifting/dump type
Dump angle	50 degree
Hydraulic system pressure	30Mpa
Standard equipemnt	ITALY BRAND Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank, Hydraulic strengthen rear outrigger. Operation way: Manual and Wireless remote control operation. one 22m3 dumper box,

III. HOOK LIFT GARBAGE TRUCK DETAILS

IV. HOOK LIFT GARBAGE TRUCK WROKSHOP

There are more than 500 workers in our factory. Every production details are strictly controlled by our technicial engineers and production manager.

V. OUR OTHER GARBAGE TRUCK SERIES VI. PRODUCT SHIPPING (RORO OR BULK SHIP OR CONTAINER)

RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping. BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.CONTAINER: The truck is put into the container. This model is used for small model trucks

VII. COMPANY INFO

CLW SPECIAL AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design , product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck ,wrecker truck , refrigerated truck and etc.

Main info as below:

• Established from 2004.
• 12 independents workshops.
• 1000 sets of equipment, 25 assemble lines.
• 300 senior engineers and technicians. About 8000 workers.
• 800kinds of LPG, trucks and semi-trailers.
• 20 years wholesale experience
• Turnover 250 million and Export 20million annually
• Turnover 2 billion trucks and semi-trailers annually.
• LPG/Truck Sold to 90 countries
• Cooperates with DONGFENG,SINOTRUK,I-SUZU,FOTON,FAW,BEIBEN etc.
