Overview

Basic Info.

Model NO.	BY-C30
Power Supply	Battery
Control	PLC
Automation	Semi-automatic
Operation Type	Ride-on
Type	Wafer Brushes
Brush Hardness	Medium Hardness
Brush Structure	Disc Type
Application	Municipal Sanitation, Side Road, Sidewalk, Park, C
Certification	CE
Customized	Customized
Condition	New
Dimension(L*W*H)	4500*1450*2200mm
Curb Weight	3200kg
Gvw	4500kg
Payload	1300 Kgs
Min. Ground Clearance	180mm
Wheelbase	2200mm
Wash & Sweep Width	1100mm
Wash & Sweep Speed	5-10km/H
Washing Speed	8-15 Km/H
Washing Capacity	3000-4000 M²/H
Max. Capacity of Garbage Bin	1100L
Max. Capacity of Water Tank	1400L
Discharge Height	750m
Continuous Working Time	6-7h
Drive Motor Power	7.5kw
Transport Package	Pallet/Wooden Case/Container
Specification	4500*1450*2200mm
Trademark	Zhenbang
Origin	Jinan, China
HS Code	8705909990
Production Capacity	1, 000 Units/Year

Product Description

Q1: How long is the warranty period for sanitation vehicles?A: The whole sanitation vehicle is guaranteed for 12 months, except for wearing parts. (not including fragile parts).Q2: Product positioning?China's first research and development of mini electric washing and sweeping truck, Leaf collecting truck, small Deep washing road sweeping truck, has been committed to building the "watertruck" brand, making high-end electric sanitation cleaning equipment,focusing on solving the world's sidewalks, non-motorized vehicle lanes, back street small Governance solutions such as lanes, and cleaning solutions for areas that cannot be accessed by large sanitation vehiclesQ3: What's the advantage of your company?A: 1. The company has a young, experienced and efficient R&D team, which is based on technological innovation and constantly promotes product iteration. Provide a solid R&D technical support for enterprises.2. Focus on the production of high-end electric sanitation equipment for many years, with rich experience. The production system is complete, with a production line workshop that can meet hundreds of vehicles, and a full range of small sanitation equipment such as garbage removal, road washing, leaf collection, water tanker truck, and high-pressure road washing vehicle.3. Strict quality management system runs through the entire production line. We strictly control all aspects of procurement, design, assembly, commissioning, testing, packaging and transportation. Especially in the assembly and testing stage, each sanitation vehicle must pass more than 60 functional tests, which can effectively ensure the efficient and stable operation of the sanitation vehicle in various environments, and ensure the performance and quality of each sanitation vehicle.4. Respond to customer needs in the first time, and is committed to providing high-quality and considerate services to global customers.5.Our company have national ,and provincial certifications, such as ISO9001,and a certificate of patent, etc.Q4: Which kinds of batteries can we choose?A: The standard is Lead-acid battery ,It also can according to your requirements, choose the lithium battery.Q5: Can you produce as per customer special requirement, such as customer brand?A: Yes, we can.Q6: How to carry out after-sales service?A:If it is in the warranty period, the parts is free. First , you need to provide the bad parts; then we will deliver new partsfor free.

Product Description

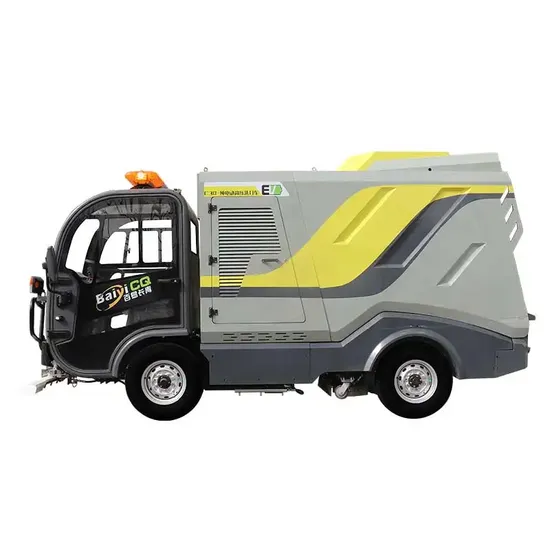

PURE ELECTRIC DEEP CLEANING VEHICLE

Deep cleaning, Reconcile the net with the true color of the ground

Integrating deep cleaning and high-pressure cleaning. The whole vehicle is pure electric. equipped with fast charging, economical and environmentally friendly, safe and reliable. it has a wide range of applications and is equipped with an intelligent sanitation system to realize full monitoring of the vehicle life cycle.

Product Parameters

Items				Units	Parameters
Vehicle overall parameters	Curb weight			kg	3200
	GVW			kg	4500
	Payload			kg	1300
	Dimensions (LxWxH)			mm	4500*1450*2200
	Min. ground clearance			mm	180
	Wheelbase			mm	2200
	Wheel tread		Front	mm	1220
			Rear	mm	1220
Working parameters	Wash & sweep width			m	1.1
	Wash & sweep speed			km/h	5~10
	Washing speed			km/h	8~15
	Washing cleanliness rate			%	≥97
	Washing methods			High-pressure washing + vacuum collection
	High-pressure pump		Rated pressure	Mpa	25
			Water flow rate	L/min	30
	Max. Capacity of Garbage Bin			L	1100
	Max. capacity of water tank			L	1400
	Fans motor			Kw	7.5
	Hydraulic motor			Kw	1.2
	Discharge angle			°	45
	Discharge height			m	750
Travel parameters	Continuous working time			h	6-7
	Max. speed (unloaded)			km/h	30
	Max. Climbing angle			%	15
	Braking distance (full load 20km/h)			m	≤5.5
	Min. turning diameter			m	6
Chassis	Number of passengers			2
	Chassis			Manganese steel cold riveted splicing light truck chassis
	Drive motor power			Kw	7.5
	Power Supply			v	72
	Battery			Ah	800( Lithium iron phosphate battery)
	Charging time	Standard		h	6-8
		Fast charging(Optional)		h	2-3
	Tyre			205R14C
	Braking method			Hydraulic Drum brake + Vacuum pump braking assist
Vehicle details configurations	Cabinet			Adopting the sheet metal electrophoretic spraying process, the left and right sides of the box are equipped with side doors
	Air conditioner			Equipped with cold and warm air conditioning, with 360-degree adjustment of air outlet direction
	Driver cabin			Adopting a fully enclosed cabin ; The front windshield is made of tempered glass
	Camera			360 ° panoramic camera with color cameras on both front, rear, left, and right sides
	Water level indicator			yes
	Water level alarm			yes
